Smuddy 3+1 Fan (Node) Wi-Fi Retrofit Smart Switch For Home Automation

Powered by Dual-Core MCU | Works with Alexa & Google Assistant | Works in Online & Offline Mode | Smart Schedules & Timers | Real Time Notifications | Auto Restores Last State After Power Cut | Humming Free Fan Speed Control | Controls AC & DC Loads Simultaneously

₹ 7999 ₹ 1995
Inclusive of all taxes
Product Features
  • No rewiring required. No Breakage. No Damage
  • Controls 3 Switches (6A) + 1 Ceiling Fan with speed control. Offers HUMMING FREE FAN SPEED CONTROL
  • Controls appliances like TV, Socket, Bulb, LED, Celing Downlight, Tubelight, Music System, CFL, Fan, Electric Kettle, Coffee Maker from anywhere in the world (Internet Required).
  • Works even without internet in Offline mode (when mobile and Smuddy device both are connected to same Wi-Fi router)
  • Invisiby fits inside your switchboard. After making them smart, your existing switches will continue to work normally also
  • Comes with Dual Core MCU (Micro-Controller Unit) which offers True multi-tasking, Faster processing speed, Smoother operations and Better Wi-Fi connectivity.
  • Works with Amazon Alexa & Google Assistant & Gemini
  • Set Multiple Schedules & Multiple Timers
  • Get Real Time Notifications when switch Turns ON/OFF
  • Offers Real Time Load State Monitoring
  • Easily Share Device access with family members
  • Multiple family members can control module from their individual mobiles
  • Restores Last State of Loads/Switches when power resumes after a power cut
  • Individual switch control - Each node/channel can be controlled individually by wall switch/Smuddy App/Alexa/Google Assistant
  • If you turn ON appliances via wall switch, you can turn off them from Smuddy App/Alexa/Google Assistant & vice versa If you turn ON appliances via Smuddy App/Alexa/Google Assistant, you can turn off them from the wall switch
  • Designed to work with Inverter as well as with Mains phase.
  • Can control AC Loads (110VAC-230VAC) and DC loads (5VDC-24VDC) simultaneously on separate channels/nodes. For details check Tech Specs below
Technical Specifications
Input Voltage 100-240VAC
Operating Frequency 50/60Hz
Wi-Fi Connectivity 2.4GHz b/g/n
Wi-Fi Security WPA/WPA2

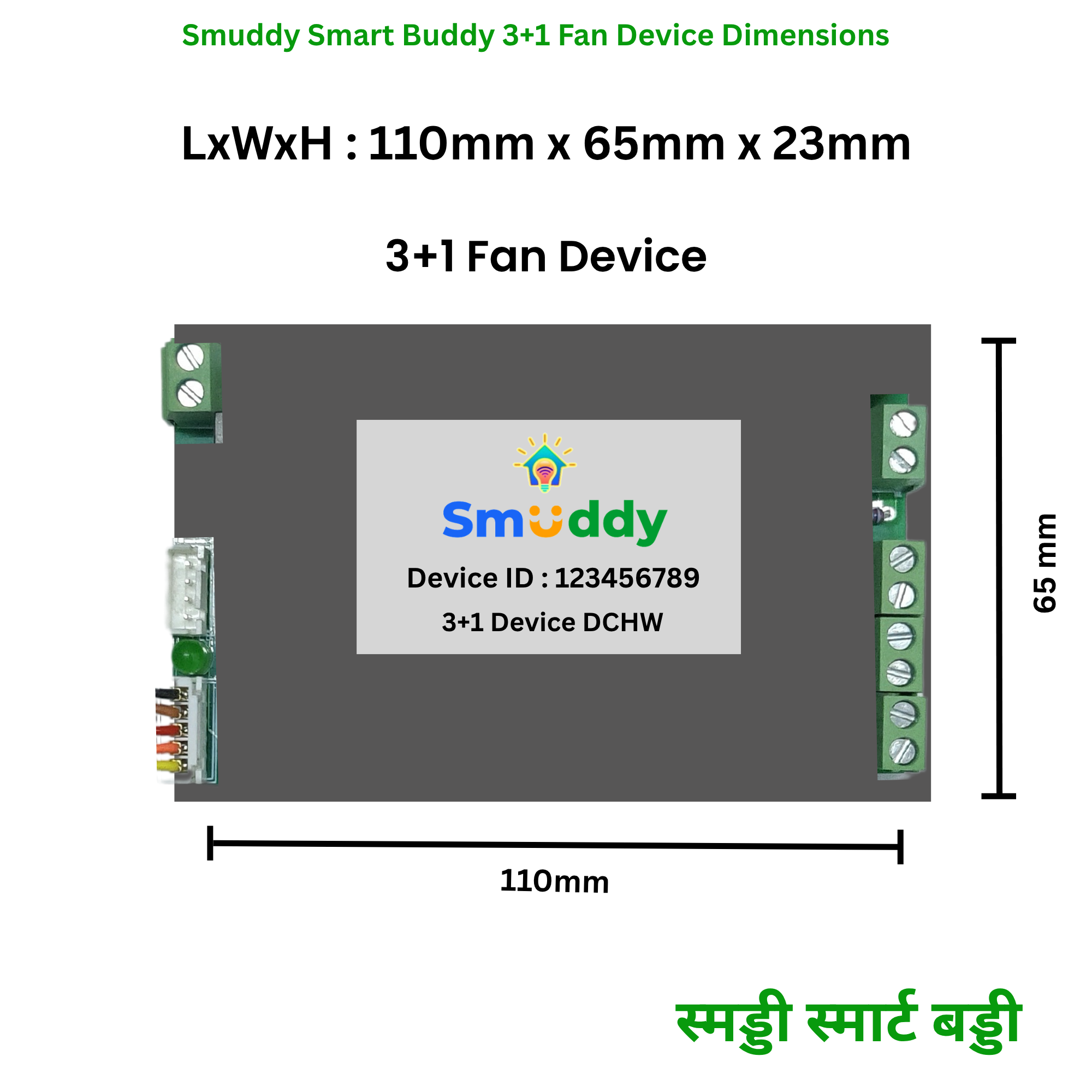

Dimensions (In Centimeters) 11Cms x 6.5Cms x 2.3Cms (LxWxH)
Enclosure HST
Color Black
Switching Type Electromechanical Relay Based Switching
Max Load on 1st, 2nd, & 3rd Node AC Loads
Resistive AC Loads: Up to 6A (max. recommended load: 1000W) @ 230VAC per node
Inductive AC Loads: Up to 3A (max. recommended load: 300VA) @ 230VAC per node
DC Loads
Resistive DC Loads: 5VDC-24VDC, up to 5A per node
Inductive DC Loads: 5VDC-24VDC, up to 3A per node
Max Load on 4th Node Fan 120W Max
Fan Speed Levels 4 Step Humming Free Fan Speed Control
Temperature Operation : 0°C to +50°C
Storage : 0°C to 70°C
Relative Humidity Operating: 10% RH to 90% RH (non-condensing)
Storage: 10% RH to 90% RH (non-condensing)
Mobile App Smuddy App (Android & iOS)
Voice Control Works with Amazon Alexa & Google Assistant & Gemini
Country of origin Designed, Developed and Proudly Made in India by NSS Technovations, Indore (M.P.)
What's in the Box

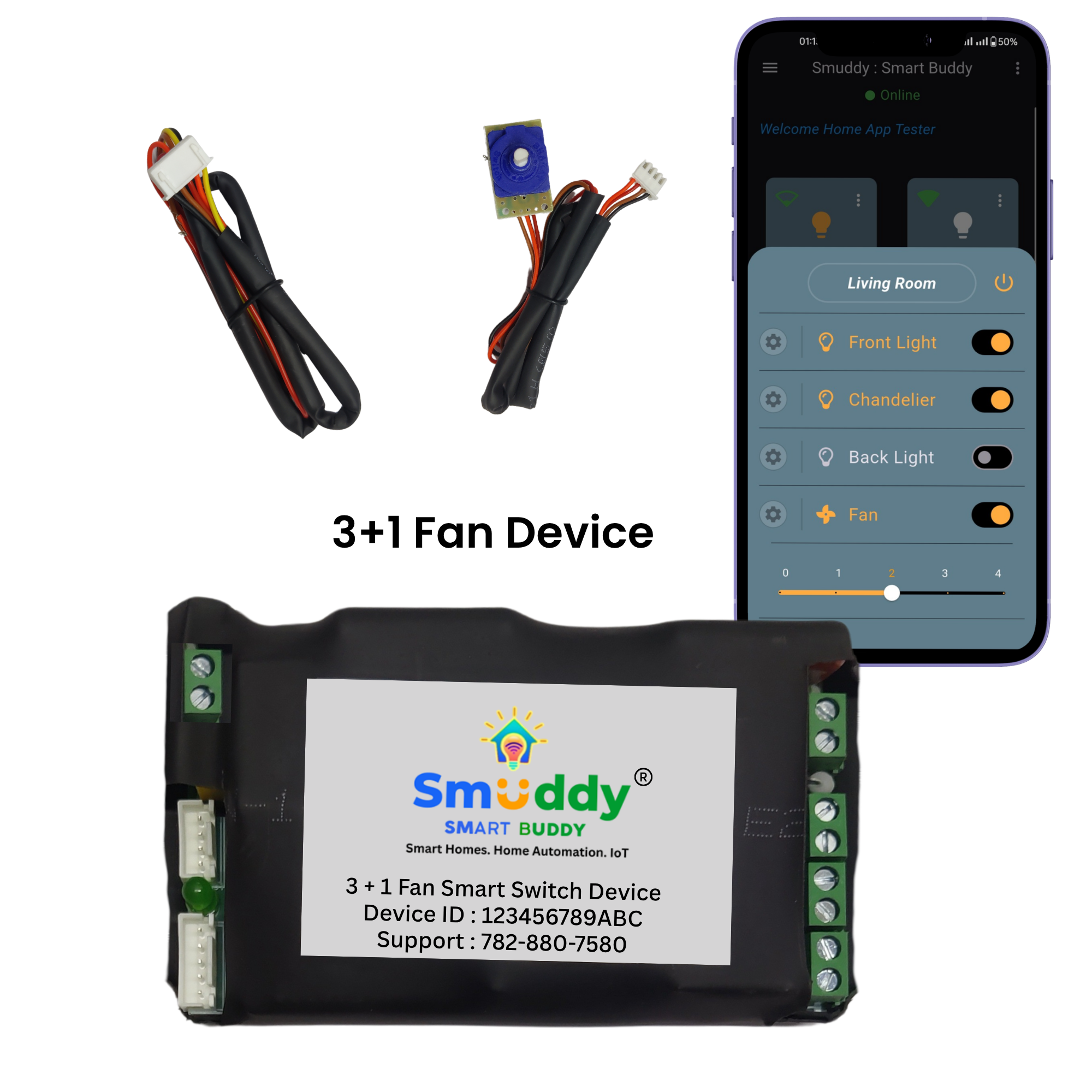

  • 1Nos Smuddy 3 Switch + 1 Fan (Node) WiFi Retrofit Smart Switch For Home Automation Module
  • 1Nos 4-Step Fan Regulator
  • 1Nos 5-pin-Female-JST-Wire-Connector

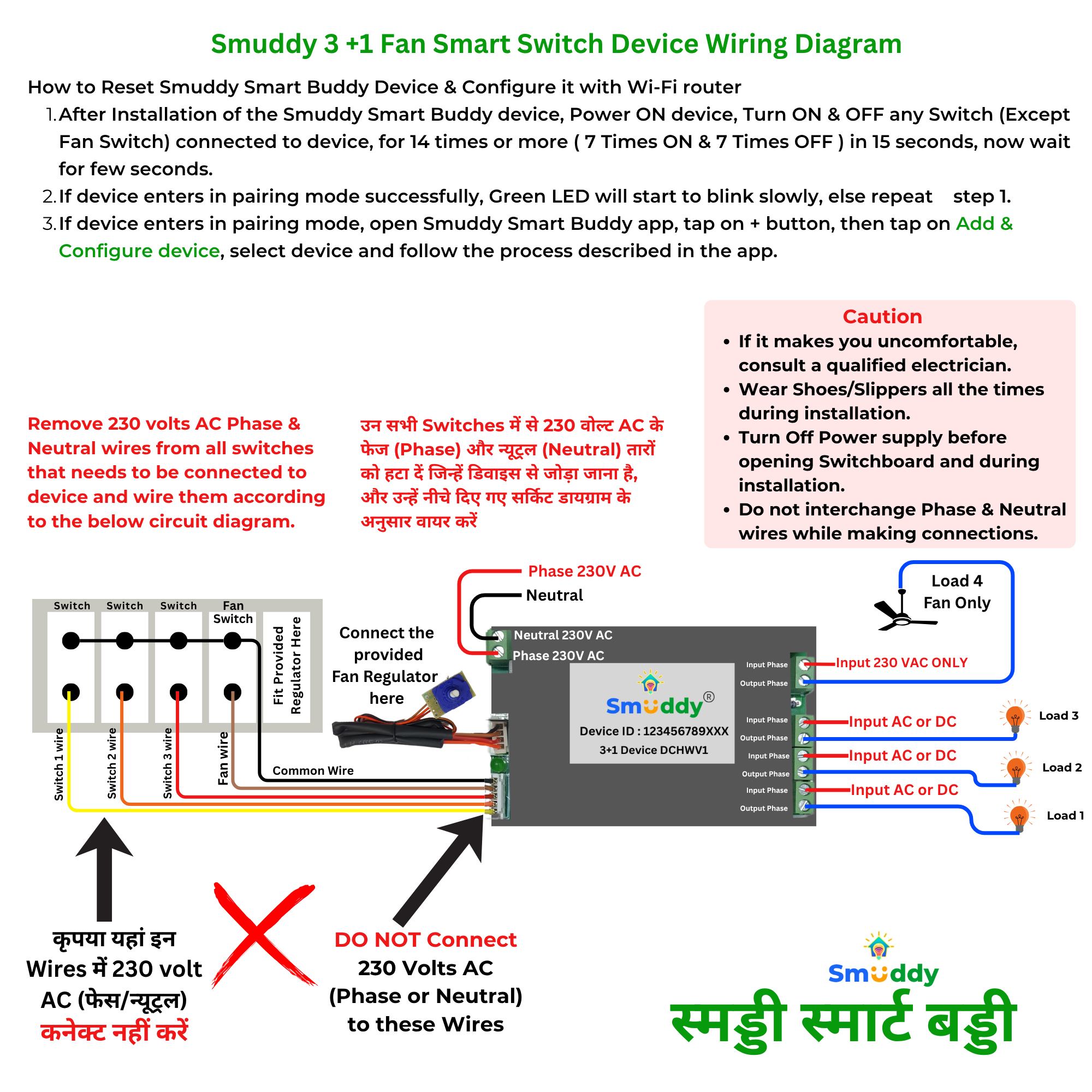

  • Wiring diagram, Tech Specs & User Manual containing QR Codes
Warranty Details
  • 1 Year Offsite Replacement Warranty + 1 Year Complimentary Offsite Repair Warranty (Total Coverage: 2 Years)
