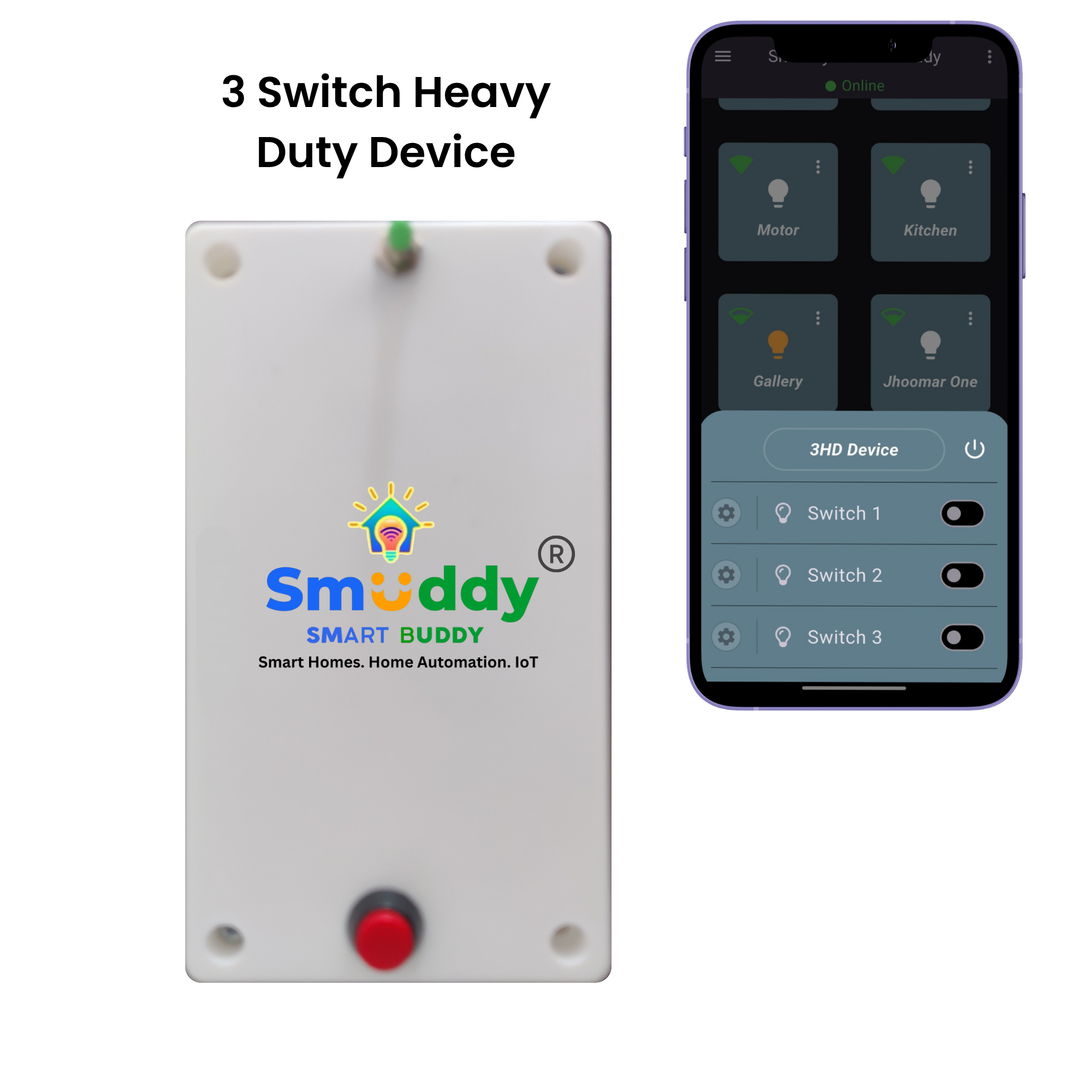

Smuddy 3 Heavy Duty Node Wi-Fi Retrofit Smart Switch For Home Automation

Powered by Dual-Core MCU | Works with Alexa & Google Assistant | Works in Online & Offline Mode | Smart Schedules & Timers | Real Time Notifications | Auto Restores Last State After Power Cut | Controls AC & DC Loads Simultaneously

₹ 8999 ₹ 2695
Inclusive of all taxes
Product Features
  • No rewiring required. No Breakage. No Damage
  • Controls 3 Switches (25A)
  • Controls 3 appliances like AC, Deep Freezer, Refrigerator, Geyser, Water Motor Pump (DOL Starter Type/MCB Type/Switch Type), Microwave, Heater and other 16A/20A Household Appliances (1 on each node) from anywhere in the world (Internet Required).
  • Works even without internet in Offline mode (when mobile and Smuddy device both are connected to same Wi-Fi router)
  • Comes with Dual Core MCU (Micro-Controller Unit) which offers True multi-tasking, Faster processing speed, Smoother operations and Better Wi-Fi connectivity.
  • Works with Alexa & Google Assistant & Gemini
  • Set Multiple Schedules & Multiple Timers
  • Get Real Time Notifications when switch Turns ON/OFF
  • Offers Real Time Load State Monitoring
  • Easily Share Device access with family members
  • Multiple family members can control module from their individual mobiles
  • Restores Last State of Loads/Switches when power resumes after a power cut
  • Individual switch control - Each node/channel can be controlled individually by wall switch/Smuddy App/Alexa/Google Assistant
  • If you turn ON appliances via wall switch, you can turn off them from Smuddy App/Alexa/Google Assistant & vice versa If you turn ON appliances via Smuddy App/Alexa/Google Assistant, you can turn off them from the wall switch
  • Designed to work with Inverter as well as with Mains phase.
  • Can control AC Loads (110VAC-230VAC) and DC loads (5VDC-28VDC) simultaneously on separate channels/nodes. For details check Tech Specs below
Technical Specifications
Input Voltage 100-240VAC
Operating Frequency 50/60Hz
Wi-Fi Connectivity 2.4GHz b/g/n
Wi-Fi Security WPA/WPA2

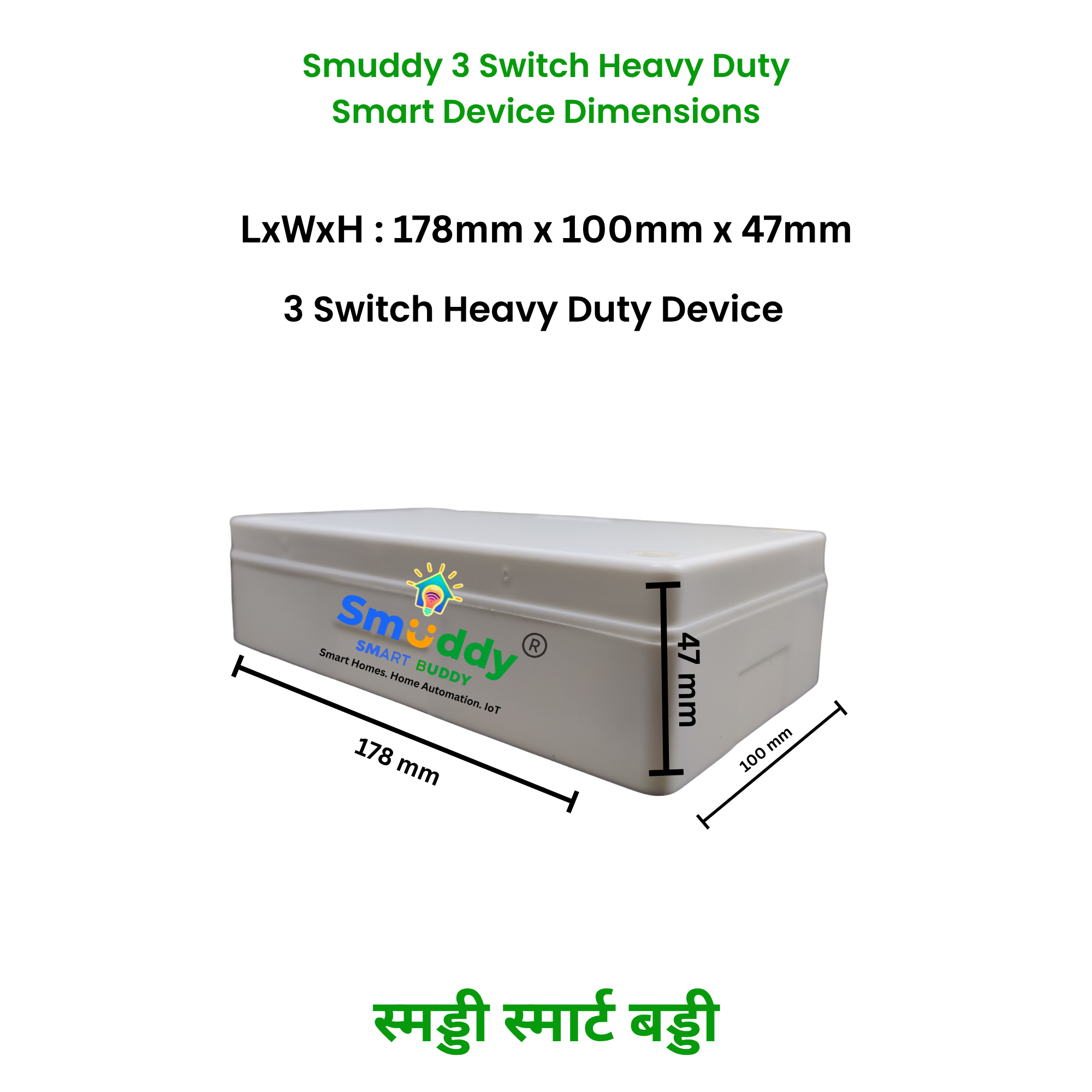

Dimensions (In Centimeters) 17.8Cms x 10Cms x 4.7Cms (LxWxH)
Enclosure ABS/Polycarbonate
Color White
Switching Type Electromechanical Relay Based Switching
Max Load on 1st, 2nd & 3rd Node AC Loads
Maximum Resistive Load: 4000W Per Node
Maximum Inductive Load: 2000W Per Node
DC Loads
Resistive DC Loads: 5VDC-28VDC, up to 20A per node
Inductive DC Loads: 5VDC-28VDC, up to 10A per node
Temperature Operation : 0°C to +50°C
Storage : 0°C to 70°C
Relative Humidity Operating: 10% RH to 90% RH (non-condensing)
Storage: 10% RH to 90% RH (non-condensing)
Mobile App Smuddy App (Android & iOS)
Voice Control Works with Amazon Alexa & Google Assistant & Gemini
Country of origin Designed, Developed and Proudly Made in India by NSS Technovations, Indore (M.P.)
What's in the Box
  • 1Nos Smuddy 3 Heavy Duty Node WiFi Retrofit Smart Switch For Home Automation Module

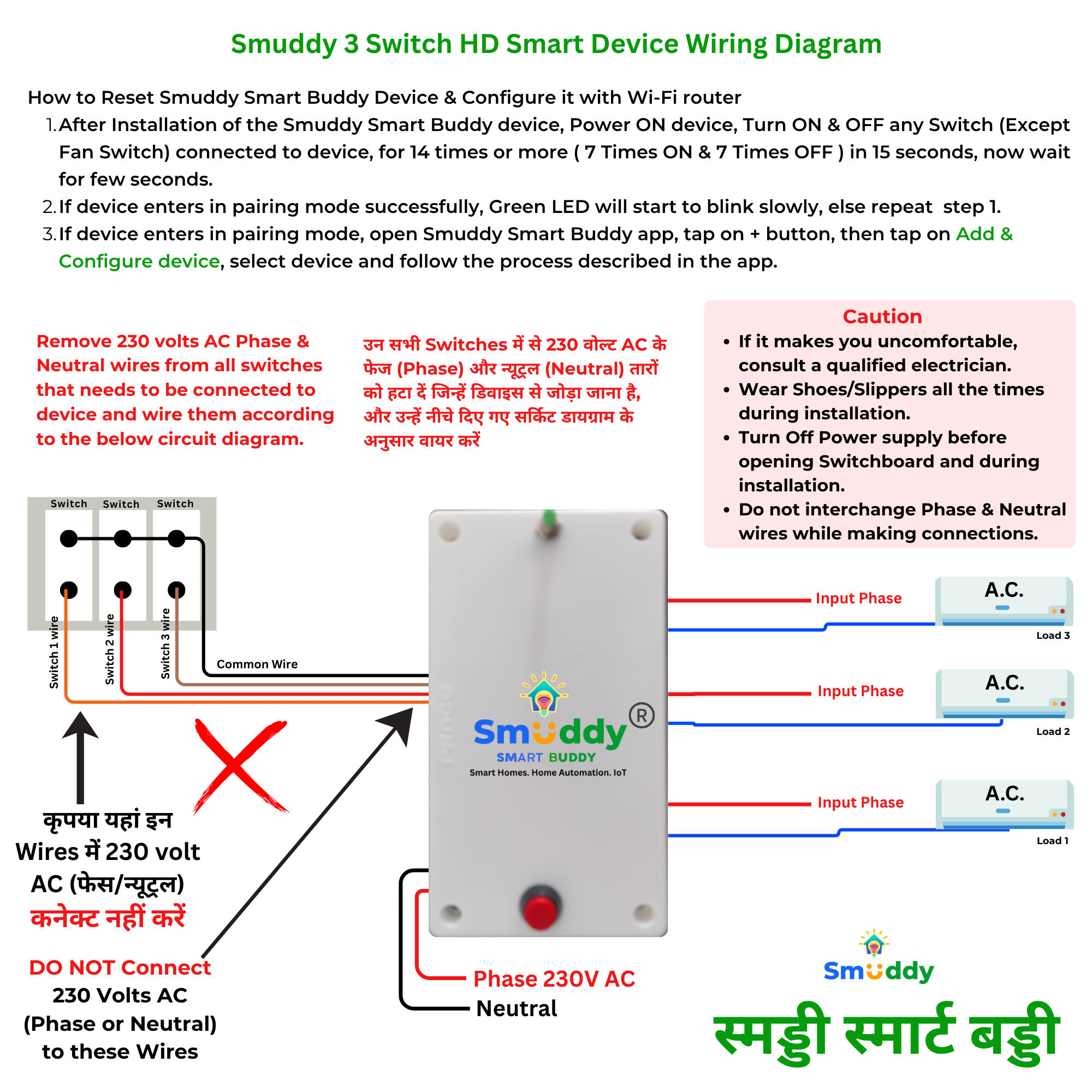

  • Wiring diagram, Tech Specs & User Manual containing QR Codes
Warranty Details
  • 1 Year Offsite Replacement Warranty + 1 Year Complimentary Offsite Repair Warranty (Total Coverage: 2 Years)
