Smuddy 5 Node Wi-Fi Retrofit Smart Switch For Home Automation

Powered by Dual-Core MCU | Works with Alexa & Google Assistant | Works in Online & Offline Mode | Smart Schedules & Timers | Real Time Notifications | Auto Restores Last State After Power Cut | Controls AC & DC Loads Simultaneously

₹ 8499 ₹ 2095
Inclusive of all taxes
Product Features
  • No rewiring required. No Breakage. No Damage
  • Controls 5 Switches (6A)
  • Please Note : If you want to operate Fan with this module, you will only be able to turn the fan ON and OFF, you will not be able to control Fan speed. If you need fan speed control also then buy Smuddy 2+1 Fan Node or Smuddy 3+1 Fan Node or Smuddy 4+1 Fan Node
  • Controls appliances like TV, Socket, Bulb, LED, Celing Downlight, Tubelight, Music System, CFL, Fan, Electric Kettle, Coffee Maker, Aquarium (Aquarium's Light/Feeder/Filter/Heater) from anywhere in the world (Internet Required).
  • Works even without internet in Offline mode (when mobile and Smuddy device both are connected to same Wi-Fi router)
  • Invisiby fits inside your switchboard. After making them smart, your existing switches will continue to work normally also
  • Comes with Dual Core MCU (Micro-Controller Unit) which offers True multi-tasking, Faster processing speed, Smoother operations and Better Wi-Fi connectivity.
  • Works with Amazon Alexa & Google Assistant & Gemini
  • Set Multiple Schedules & Multiple Timers
  • Get Real Time Notifications when switch Turns ON/OFF
  • Offers Real Time Load State Monitoring
  • Easily Share Device access with family members
  • Multiple family members can control module from their individual mobiles
  • Restores Last State of Loads/Switches when power resumes after a power cut
  • Individual switch control - Each node/channel can be controlled individually by wall switch/Smuddy App/Alexa/Google Assistant
  • If you turn ON appliances via wall switch, you can turn off them from Smuddy App/Alexa/Google Assistant & vice versa If you turn ON appliances via Smuddy App/Alexa/Google Assistant, you can turn off them from the wall switch
  • Designed to work with Inverter as well as with Mains phase.
  • Can control AC Loads (110VAC-230VAC) and DC loads (5VDC-24VDC) simultaneously on separate channels/nodes. For details check Tech Specs below
Technical Specifications
Input Voltage 100-240VAC
Operating Frequency 50/60Hz
Wi-Fi Connectivity 2.4GHz b/g/n
Wi-Fi Security WPA/WPA2

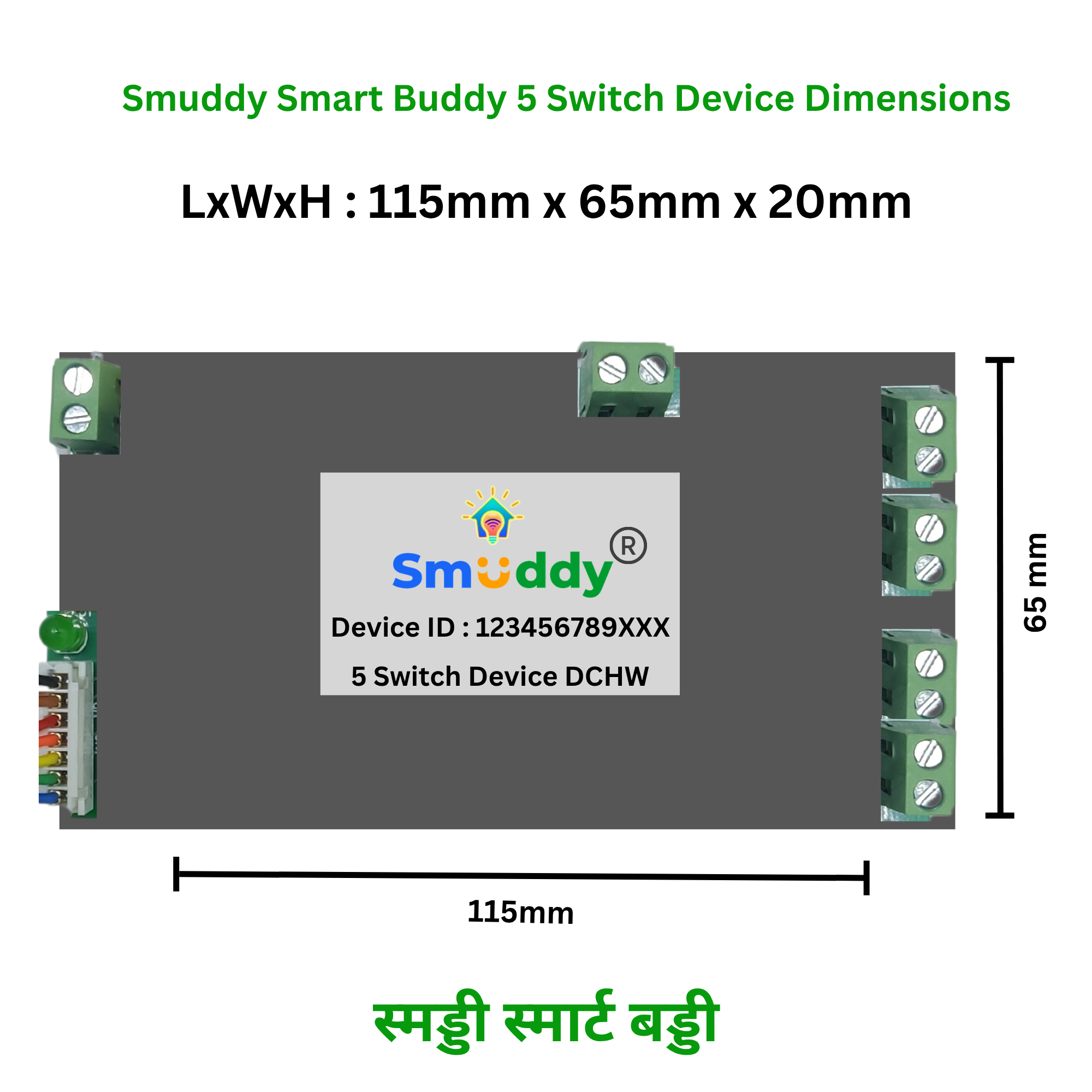

Dimensions (In Centimeters) 11.5Cms x 6.5Cms x 2Cms (LxWxH)
Enclosure HST
Color Black
Switching Type Electromechanical Relay Based Switching
Max Load on 1st, 2nd, 3rd, 4th & 5th Node AC Loads
Resistive AC Loads: Up to 6A (max. recommended load: 1000W) @ 230VAC per node
Inductive AC Loads: Up to 3A (max. recommended load: 300VA) @ 230VAC per node
DC Loads
Resistive DC Loads: 5VDC-24VDC, up to 5A per node
Inductive DC Loads: 5VDC-24VDC, up to 3A per node
Temperature Operation : 0°C to +50°C
Storage : 0°C to 70°C
Relative Humidity Operating: 10% RH to 90% RH (non-condensing)
Storage: 10% RH to 90% RH (non-condensing)
Mobile App Smuddy App (Android & iOS)
Voice Control Works with Amazon Alexa & Google Assistant & Gemini
Country of origin Designed, Developed and Proudly Made in India by NSS Technovations, Indore (M.P.)
What's in the Box

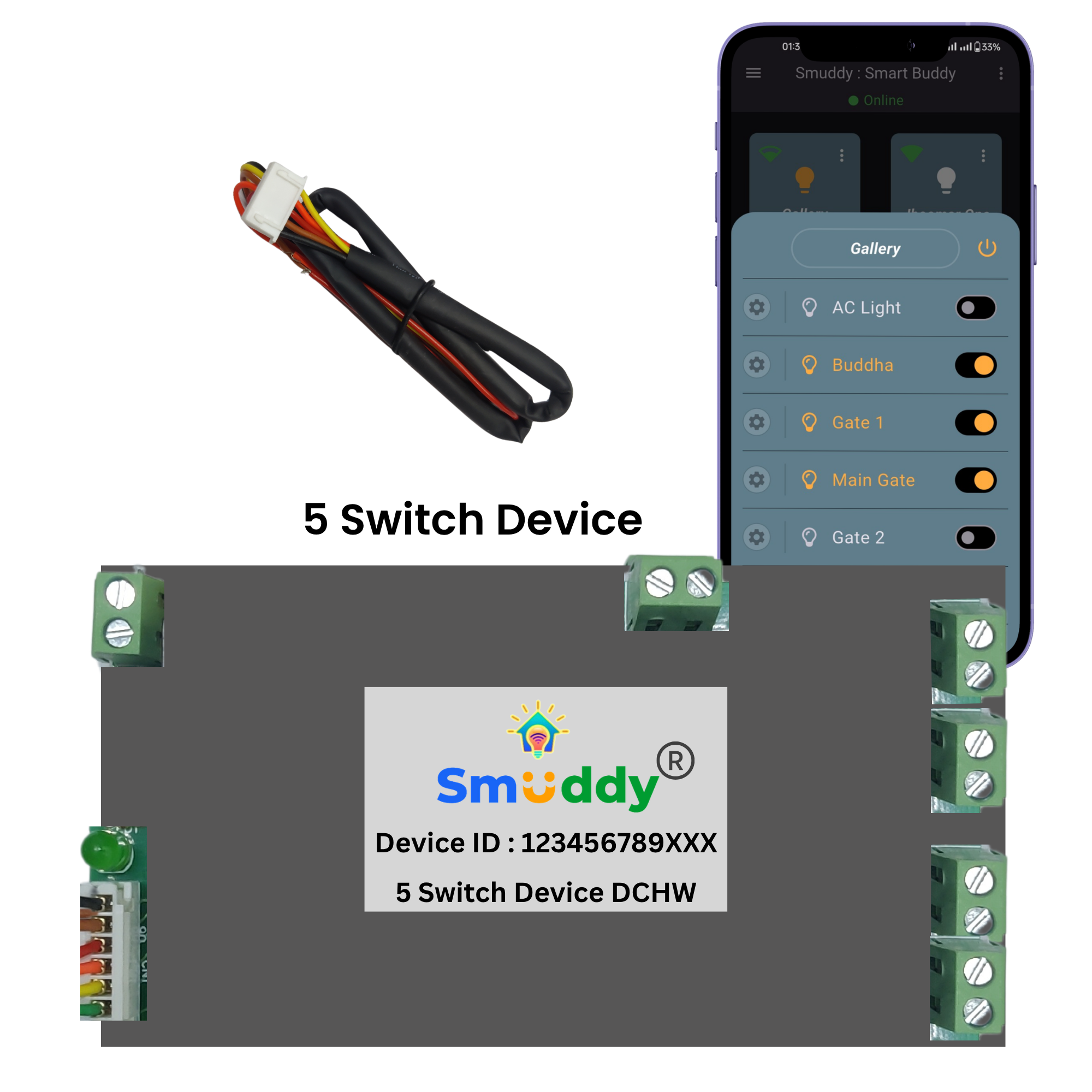

  • 1Nos Smuddy 5 Switch Node WiFi Retrofit Smart Switch For Home Automation Module
  • 1Nos 6-pin-Female-JST-Wire-Connector

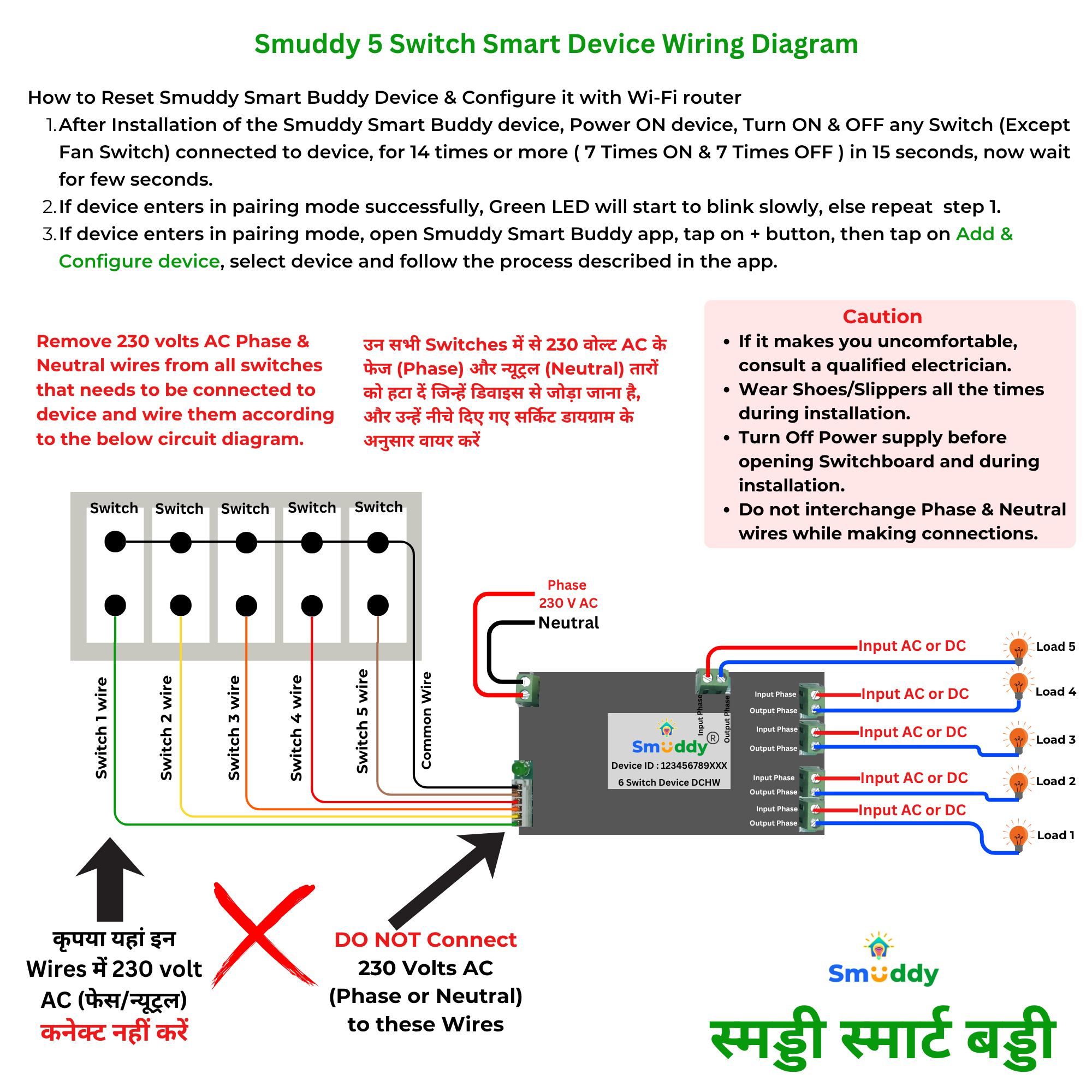

  • Wiring diagram, Tech Specs & User Manual containing QR Codes
Warranty Details
  • 1 Year Offsite Replacement Warranty + 1 Year Complimentary Offsite Repair Warranty (Total Coverage: 2 Years)
